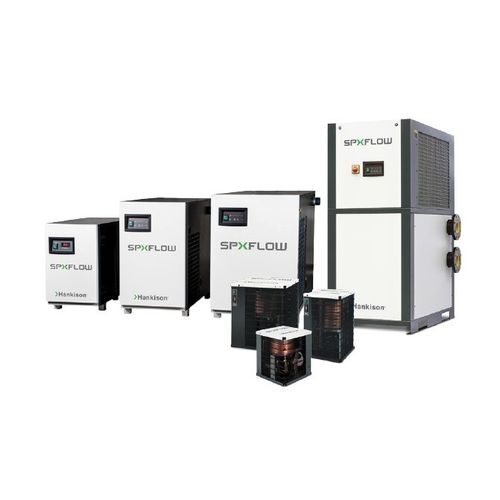

Refrigerated compressed air dryer HPR, HPRN series

non-cycling

When we streamlined our HPR & HPRN Series non-cycling refrigerated compressed air dryers, our engineers focused on simplicity and reliability. Your input helped build a solution that offers the right combination of technology and simplicity to keep your air system at a dry, 38°F (+3°C) pressure dew point, from 5 through 1200 scfm. These dryers are built for durability, in a space-saving design. Sturdy sheet steel is formed and protected by an epoxy-based powdercoat finish. Plus, Hankison’s industry leading, five year warranty is now available for the HPRN Series. BETTER BY DESIGN • Smooth bore, copper tube-on-tube heat exchangers deliver low pressure dew point performance • Centrifugal separator efficiently captures liquid condensate at varying inlet loads • Static condenser design – provides trouble free, quiet operation R E LIAB LE CON D E N SATE MANAG E M E NT • Models 5/10-15 scfm: Pneumatically operated internal float drain • Models 25-50 scfm: Electronic drain valve EASE OF MONITORING • Models 5/10-15 scfm: Lighted On/Off switch • Models 25-50 scfm: Lighted On/Off switch and dew point temperature indicator OPTIONS • Air bypass valve allows ease of service • Wall mount bracket enables flexible installation SAFETY FI R ST — E NVI R ON M E NTALLY FR I E N D LY • CFC free R134a refrigerant • CSA approved
