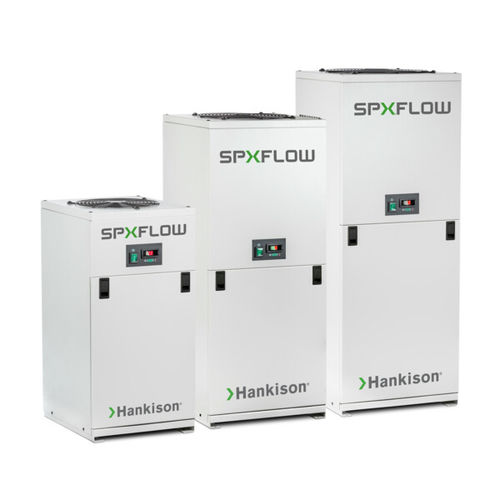

Refrigerated compressed air dryer HITN series

two-stagecompacthigh-temperature

HITN (High Inlet Temperature) refrigerated compressed air dryers are compact with highly efficient heat exchangers, no internal mesh to foul. Heat exchange efficiency is increased by creating helix flow paths in counterflow arrangement. The two-stage separator/filter removes condensed oil ad water over a wide range of flows. A reliable condensate drain - air operated - automatically discharges water and oil from dryer without air loss and no timer to adjust. Our automatic refrigeration temperature control system maintains precise chilled air temperature that never needs to be adjusted for load, ambient or seasonal changes. No freeze-ups! A Hermetic refrigeration system requires no maintenance & no adjustments - it operates as reliably as your home refrigerator. MAKE THE RIGHT CHOICE Hankison HITN High Inlet Temperature refrigerated air dryers are designed to efficiently dry compressed air with inlet temperatures up to 180°F. With six pre-engineered sizes to choose from, the HITN is the ideal drying solution for auto service centers and general shop air applications that use piston type air compressors 5.0 to 30 horsepower. BUILT TO INTERNATIONAL STANDARDS FOR PERFORMANCE, SAFETY & ENVIRONMENTAL SUSTAINABILITY * Moisture removal to ISO 8573-1: 2010 Quality Class 6 (50°F) pressure dew point * Certified for quality and safety to UL1995/CSA 22.2 No. 236-95 * Environmentally friendly R-134a and R-407c refrigerants
