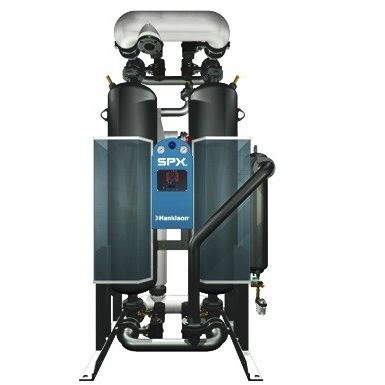

Heat-of-compression compressed air dryer HCD series

two-stagecompact

Where Ideas Meet Industry The Hankison HCD Series provides a cost effective solution to remove moisture from compressed air. The sustainable energy saving design reduces operating costs and delivers instrument quality air. Thermal energy generated during the air compression process is effectively utilized to regenerate the off-line desiccant bed. Ideally suited for oil-free air compressors, HCD series dryers turn "waste heat" into energy savings. Advantages: Consumes under 50 watts, less than the power requirement of a typical lap-top computer Offers the lowest cost of operation as compared to conventional dehydration technology Delivers ISO 8573.1: 2010 Air Quality 2 to 4 (-40°F to +37°F) Fully packaged, skid mounted design, provides ease of installation S t a n d a r d Fe a t u r e s : • Pressure vessels are designed in accordance with the ASME Boiler and Pressure Vessel Code Section VIII Division 1 • ASME rated pressure relief valves control pressure build-up due to process upset • Expanded metal personnel protection and hot pipe insulation provides added safety measures • NEMA4/4X, IP66 rated controller, polycarbonate enclosure for protection in corrosive environments • Flow models 350 to 450 scfm employ angle seat valves for reliable operation • Flow models 600 to 10000 scfm utilize non-lubricated, high performance butterfly valves • Front panel is equipped with left and right tower pressure gauges and moisture indicator for “at a glance” performance • Towers are filled with high grade desiccant maintaining optimal performance under high temperatures
