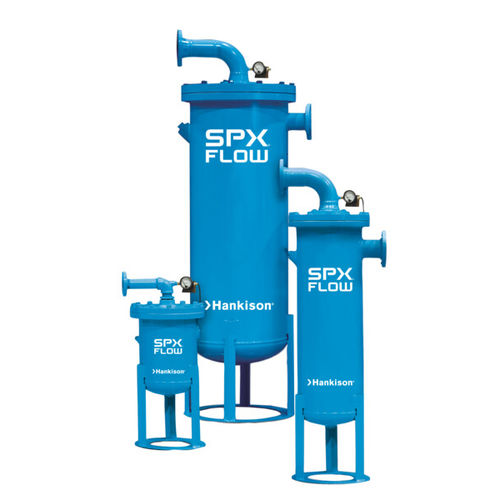

Oil mist collector M series

filtration mediacompact

Mist Eliminators protects products and processes from contamination and increases the life of pneumatic equipment. M Series is an auditors choice to reduce energy costs and remove oil and water aerosols from compressed air systems. Removes submicronic particles for ultra clean air: 100% of particles 3 microns and larger 99.98% of particles 0.1 micron and larger 0.5 ppm w/w maximum liquid content after filtration 1000 ppm maximum inlet liquid loading Low pressure drop: 0.5 to 1 psi (0.04 to 0.07 kgf/cm2) Long element life: 8 to 15 years Virtually maintenance free Extra protection: Captures and retains large slugs of oil and water, should drain trap fail Protects downstream equipment from contamination should oil separator on rotary screw compressor fail Standard Features: 5 year equipment warranty 5 year element life guarantee Differential pressure gauge mounted and piped Heavy duty ASME stamped pressure vessel Long life mist eliminator element Floor stand Dedicated vent port for demand type drains
