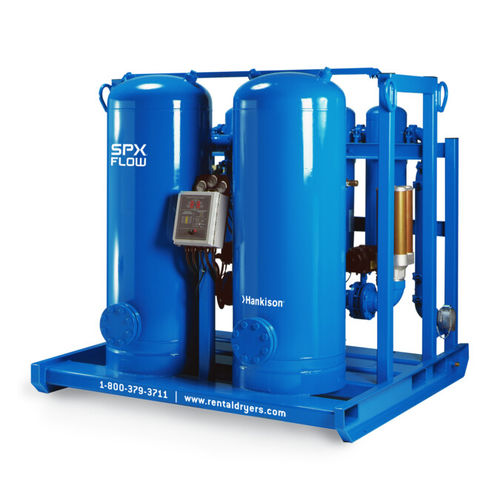

Desiccant compressed air dryer RDH, RDHHP series

high-pressure

Mounted particulate and oil removal prefilters c/w automatic condensate drains and a one-micron afterfilter - no field Heavy-duty frame with lifting lugs and forklift channels for easy handling NEMA 4, 115/1/60 electrics - suitable for outdoor operation Units can be field adjusted for -40°F or -100°F pressure Full instrumentation package provides ready indication of a system malfunction High-pressure models available *Transport desiccant dryers on air-ride truck only F E AT U R E S • Mounted particulate and oil removal prefilters c/w automatic condensate drains and a one micron afterfilter - no field installation of filters required • Heavy duty frame with lifting lugs and fork lift channels for easy handling • NEMA 4, 115/1/60 electrics - suitable for outdoor operation (all pneumatic units available) • Units can be field adjusted for -40°F or -100°F pressure dew point • Full instrumentation package provides ready indication of system malfunction • High pressure models available O P E R AT I N G C O N D I T I O N S • Maximum inlet compressed air temperature: 120°F • Minimum/maximum ambient temperature: 35/120°F standard (-10/120°F with low ambient package installed)
