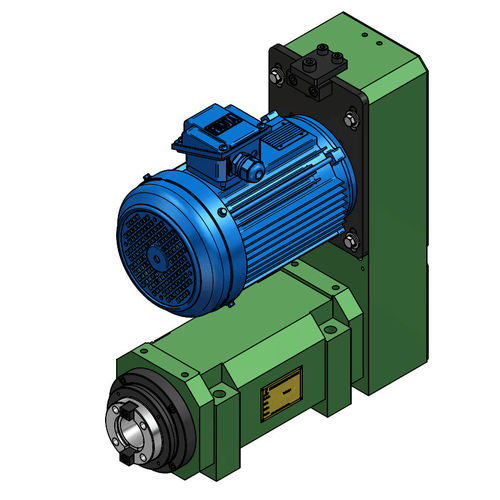

Machining spindle S80H-NT50
drillingmotorizedbelt-driven

machining spindle
machining spindle
Add to favorites
Compare this product


Characteristics

Function
machining, drilling
Drive system
motorized, belt-driven
Rotational speed

Min.: 100 rpm
(628.32 rad.min-1)

Max.: 3,000 rpm
(18,849.56 rad.min-1)

Diameter

Min.: 1 mm
(0 in)

Max.: 65 mm
(2.6 in)

Description

S80 spindle housing itself is an FC30 casting, which further underwent precision boring and honing, and the material for spindle are alloy steels subjected to high frequency heat treatment. They are assembled with SKF Germany, NSK Japan and Taiwan TPI precision bearings which maintaining the spindle nose accuracy 0.002mm or less. Its maximum capacity RPM 3000 is suitable to mount on a CNC servo slide or hydraulic feed table for your machining applications. . Standard 3-phase AC motor 3.7kW is included, optional maximum power up to 5.6kW . Belt driven at fixed speed and incorporate a timing or Poly-V belt . Spindle taper NT50, A2-5 and FB75 are available . Available for servo driven at variable speeds . AC Induction Motor protection IP 54 . Gear motor is available upon request
