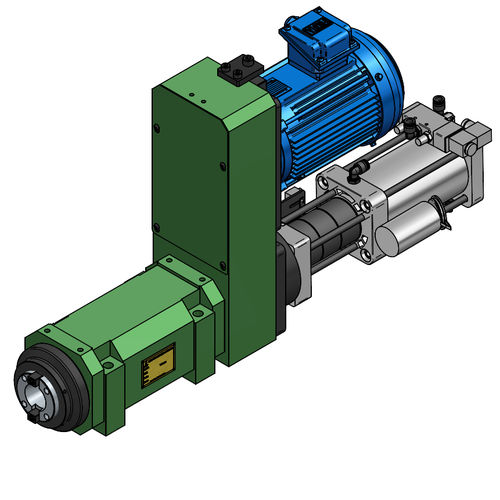

Machining spindle SC80H-BT50drillingwith automatic tool changermotorized
Add to favorites
Compare this product
Characteristics
- Function
- machining, drilling
- Other characteristics
- with automatic tool changer, motorized
- Rotational speed
Min.: 50 rpm
(314.16 rad.min-1)Max.: 3,000 rpm
(18,849.56 rad.min-1)- Diameter
Min.: 1 mm
(0 in)Max.: 65 mm
(2.6 in)
Description
SC80 machining unit is designed for auto tool changing with a pneumatic clamping and unclamping cylinder and assembled with SKF or NSK bearings, the accuracy is guaranteed under 0.003mm. Its maximum capacity RPM 3000 is suitable to mount on a CNC servo slide for your machining applications.
． Standard 3-phase AC motor 2.2kW is included, optional maximum power up to 3.7kW
． Belt driven at fixed speed and incorporate a timing or Poly-V belt
． Spindle taper BT50
． Available for servo driven at variable speeds
． AC Induction Motor protection IP 54
． Gear motor is available upon request
