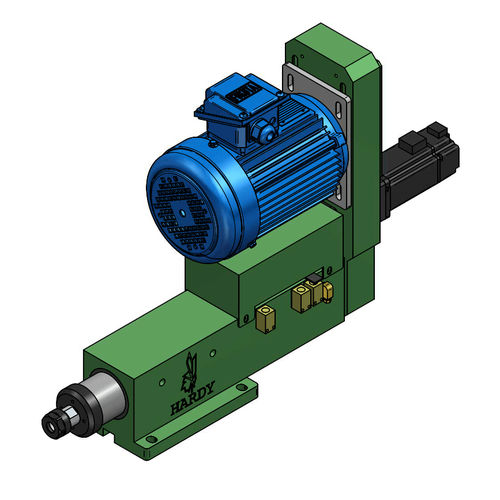

CNC machining unit SSD03-ER16

1-axis

SSD03 spindle unit is designed servo feeding with ball screw grade C5 and servo motor, the accuracy of spindle nose is strictly under 0.003mm and maximum drilling capacity up to 6mm (S45C). CNC Spindle unit allows to perform all types of machining applications such as drilling, tapping, chamfering, reaming and countersinking. ． Standard 3-phase AC motor 0.4kW is included, optional maximum power up to 0.75kW ． Belt driven at fixed speed and incorporate a Poly-V belt ． Feed rate is programmable and driven by preferable servo motor ． Feeding is driven by HIWIN or PMI Grade C5 ball screw ． Spindle taper ER16, JT1 and JT2 are available ． Available for servo driven at variable speeds ． OMRON proximity switch sensors and stand are furnished ． AC Induction Motor protection IP 54
