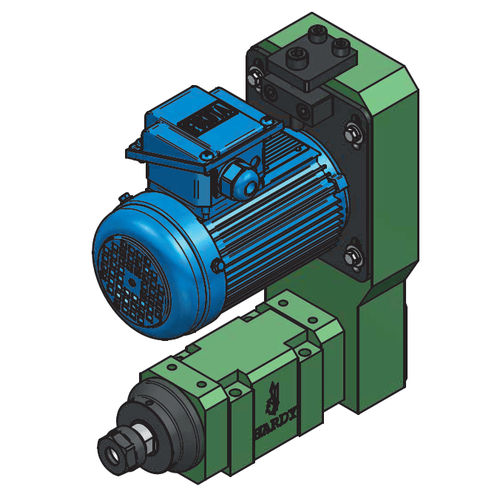

Machining spindle S25H-ER20drillingmotorized
Add to favorites
Compare this product
Characteristics
- Function
- machining, drilling
- Other characteristics
- motorized
- Rotational speed
Max.: 12,000 rpm
(75,398.22 rad.min-1)Min.: 450 rpm
(2,827.43 rad.min-1)- Diameter
Max.: 13 mm
(0.5 in)Min.: 1 mm
(0 in)
Description
Max. Drilling capacity : 10mm
Speed range at 50Hz : 500 - 8400
Max. allow speed : 12000
Spindle Taper : ER20
Standard 3-phase AC Motor Power: 0.18kW or 0.37kW
AC Induction Motor protection IP 54
Belt driven at fixed speed and incorporate a timing or Poly-V belt
Optional DELTA servo motor at variable speeds
VIDEO
Catalogs
No catalogs are available for this product.
See all of HANN KUEN MACHINERY‘s catalogsExhibitions
Meet this supplier at the following exhibition(s):
Other HANN KUEN MACHINERY products

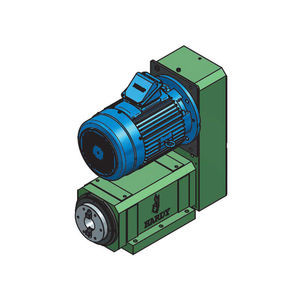

MACHINING UNIT/MILLING AND BORING SPINDLE
