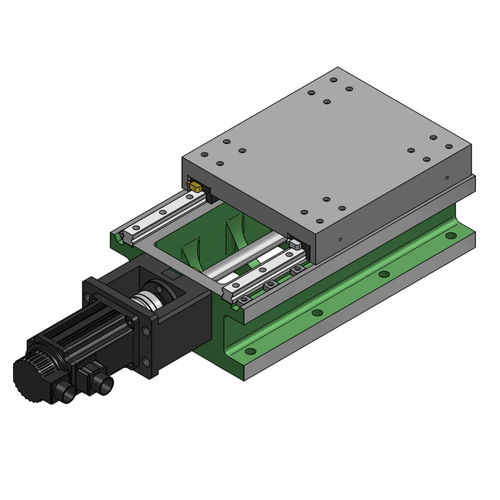

Motorized slide table RH300
linear arrayprecision

Motorized slide table - RH300 - HANN KUEN MACHINERY - linear array / precision
Motorized slide table - RH300 - HANN KUEN MACHINERY - linear array / precision
Add to favorites
Compare this product

Go to the HANN KUEN MACHINERY website for more information

Characteristics

Operation
motorized
Options
linear array, precision

Description

Max. Stroke : 650mm Saddle : 300 x 350mm Standard Ball Screw Grade : C7 - Ø25x5 or Ø32x5 [mm] Precision Ball Screw Grade : C5 or C3 (Optional) Linear Block : Ball Type or Cylindrical Roller Linear Width : 25mm Servo motor stand / coupling / telescopic included Optional DELTA servo motor Parallelism : within 0.01mm/100mm
