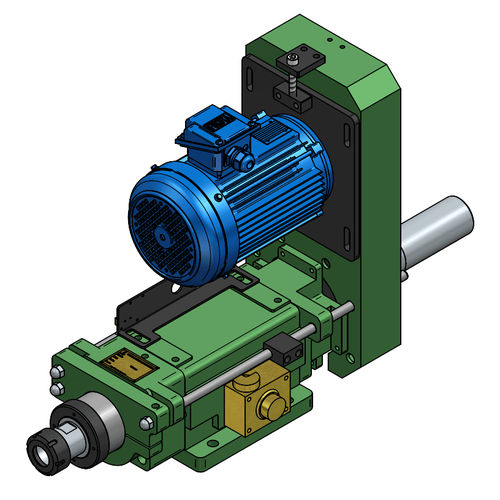

Electro-hydraulic drilling unit SD8-ER40self-feedmulti-spindle
Add to favorites
Compare this product
Characteristics
- Drive type
- electro-hydraulic
- Other characteristics
- self-feed, multi-spindle
- Rotational speed
Min.: 50 rpm
(314.2 rad.min-1)Max.: 1,500 rpm
(9,424.8 rad.min-1)- Stroke
Min.: 1 mm
(0.04 in)Max.: 150 mm
(5.91 in)- Torque
Min.: 10 Nm
(7.38 ft.lb)Max.: 250 Nm
(184.39 ft.lb)
Description
SD8 is an automated selfeeder drilling head unit with a hydraulic fluid valve to control the feeding rate.
Maximum drilling capacity up to 35mm (S45C)
Total Stroke : 150 [mm]
Adjustable Feed Stroke: 150 [mm]
Max. Drilling Capacity : 35 [mm]
Spindle Taper : ER50 / ER40 / NT40 / MT4
Motor Power : 2.2kw or 3.7kw
Speed Range at 50Hz : 500 - 1500 [min-1]
Max. Allow Speed : 1500 [min-1]
Operating Pressure : 25 - 35 [kg/cm2]
Belt Drive : Timing
AC Induction Motor protection IP 54
OMRON proximity switch sensors and stand are included
