Tapping motor spindle SFSD06H-ER25
drillingmotorizedbelt-driven

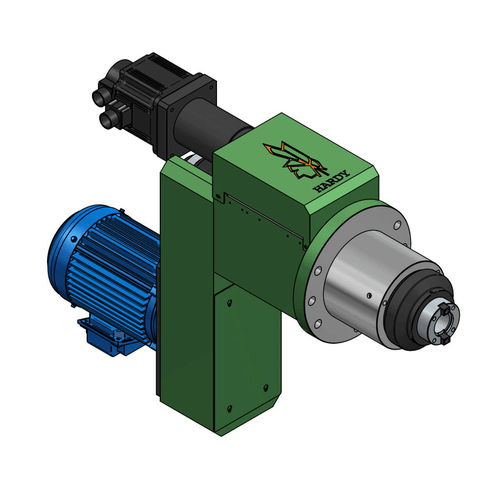

Tapping motor spindle - SFSD06H-ER25 - HANN KUEN MACHINERY - drilling / motorized / belt-driven
Tapping motor spindle - SFSD06H-ER25 - HANN KUEN MACHINERY - drilling / motorized / belt-driven
Add to favorites
Compare this product


Characteristics

Function
tapping, drilling
Drive system
motorized, belt-driven
Rotational speed

Max.: 10,000 rpm
(62,831.85 rad.min-1)

Min.: 700 rpm
(4,398.23 rad.min-1)

Diameter

Max.: 20 mm
(0.8 in)

Min.: 1 mm
(0 in)

Description

SFSD06 spindle unit is designed servo feeding with ball screw grade C5 and servo motor for trunnion rotary machines. The accuracy of spindle nose is strictly under 0.003mm and maximum drilling capacity up to 16mm (S45C). This unit allows to perform all types of machining applications such as drilling, tapping, chamfering, reaming and countersinking. . Standard 3-phase AC motor 0.75kW is included, optional maximum power up to 1.5kW . Belt driven at fixed speed and incorporate a timing, V or Poly-V belt . Feed rate is programmable and driven by preferable servo motor . Feeding is driven by HIWIN or PMI Grade C5 ball screw . Spindle taper ER25, JT6 and HSK40 are available . Available for servo driven at variable speeds . OMRON proximity switch sensors and stand are furnished . AC Induction Motor protection IP 54

VIDEO
