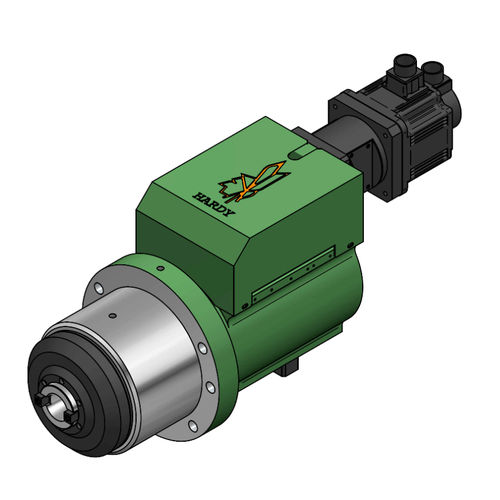

Machining spindle unit FMD155-NT40drillingmotorized
Add to favorites
Compare this product
Characteristics
- Function
- drilling, machining
- Other characteristics
- motorized
- Rotational speed
2,500 rpm
(15,707.96 rad.min-1)- Diameter
30 mm
(1.2 in)
Description
FMD155 Built-in motor spindle unit is designed for drilling and tapping applications. The feeding is transmitted by a C5 class ball screw and servo motor for accurate positioning. This product design provides space saving and increasing your efficiency and productivity. The spindle nose accuracy is under 0.003mm and maximum drilling capacity up to 30mm (S45C).
． Drilling Capacity 30mm
． Tapping Capacity M24
． Maximum Stroke : 120mm
． Spindle Taper : NT40
． Maximum RPM : 2500
． Motor Power : 3.7 KW
． Feeding is driven by a grade C5 ball screw
． OMRON proximity switch sensors and stand are furnished
． Oil cooler is required
． Driver is required
． Encoder is Optional
