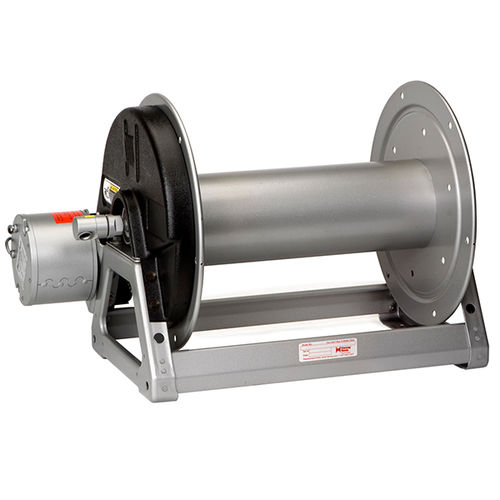

Hose reel 1500 seriesfor waterfor airmanual
Add to favorites
Compare this product
Characteristics
- Type
- hose
- Applications
- for water, for air
- Drive mechanism
- manual, motorized
- Configuration
- fixed
- Other characteristics
- high-pressure
- Hose/cable length
Min.: 15 m
(49'02" )Max.: 152 m
(498'08" )
Description
1500
Manual or Power Rewind Reels
To handle single 3/8" through 5/8" I.D. hose
Lawn Care / Pest Control / Pressure Washing / Agriculture / Steam Cleaning / High Pressure / Water / Air
Lightweight, compact reels designed for long lengths of hose in manual and power rewind
Manual rewind reels include: cam-lock drag brake, spring actuated pin lock and direct crank rewind.
Power rewind reels include: chain and sprocket drive powered by electric, hydraulic or air motor.
Standard inlet: 90° ball bearing swivel joint, 1/2" female NPT threads
Standard outlet: 1/2" female NPT threads
Optional rollers: specify roller position when ordering
Standard pressures to 3000 psi (207 bar), available up to 10,000 psi (690 bar) – must specify
Temperatures from +20° F to +400° F (-7° C to +204° C)
Consult factory for other pressures and temperatures
