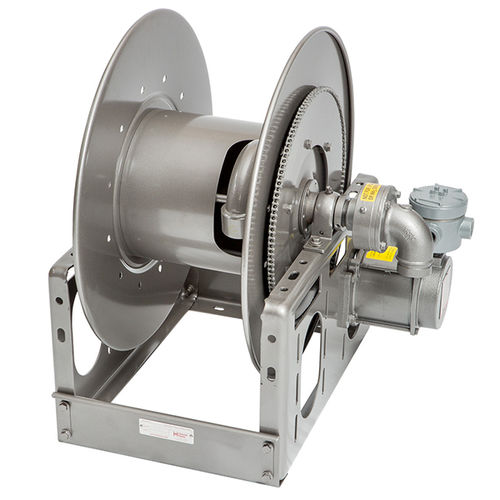

Hose reel 1 1/2" Seriesheavy-dutyfor fuelmanual
Add to favorites
Compare this product
Characteristics
- Type
- hose
- Applications
- heavy-duty, for fuel
- Drive mechanism
- manual, motorized
- Configuration
- fixed
- Reel material
- stainless steel, aluminum
- Other characteristics
- custom
- Hose/cable length
Max.: 61 m
(200'01" )Min.: 15 m
(49'02" )
Description
Manual or Power Reels
To handle single 1-1/4" through 1-1/2" I.D. hose
- Strong, heavy-duty reel
- Gear-driven crank rewind or chain and sprocket drive powered by an electric, hydraulic, or compressed air motor
- Optional auxiliary crank rewind for power rewind reels
- Choose EP or EPJ option
- Comet brake standard on power rewind without auxiliary crank
- Standard inlet: 90° ball bearing swivel joint with 1-1/2" female NPT threads and 2" Victaulic® groove
- Standard outlet: Flanged riser with 1-1/2" female NPT threads
- Other sizes and/or threads can be furnished and must be specified
- Standard: inlet, outlet riser, and hub assembly are steel
- Options: also available in aluminum or stainless steel
- Rollers and roller mounting brackets are accessory items. Specify roller position
- Chain guard is available upon request; must be specified
- Pressures to 600 psi (41 bar)
- Temperatures from -30° F to +250° F (-34° C to +121° C)
- Consult factory for other pressures and temperatures
