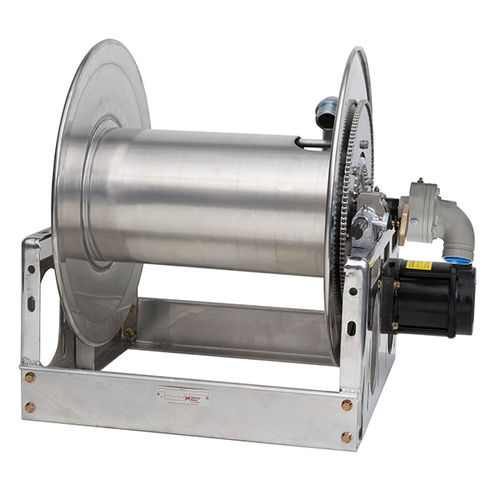

Hose reel FF Series

for fire protectionhand crankmotorized

For Large Booster Hose or Pre-Connected Collapsible Hose To handle 1-1/4" I.D. or 1-1/2" I.D. booster hose or 1-1/2" I.D. or 1-3/4" I.D. collapsible hose . Standard booster hose reel is steel, painted graphite. Aluminum or stainless steel construction is also available. . Super Booster® (aluminum construction) reel weighs up to 30% less than standard booster reel. . Gear-driven crank rewind is standard. Choose chain and sprocket drive powered by electric, hydraulic, or compressed air motor. . Pinion brake standard. . Standard inlet: 1-1/2" 90° ball bearing swivel joint with 1-1/2" female NPT threads and 2" . Victaulic® groove. . Standard outlet: 1-1/2" male NST threads. (1.990" x 9 threads per inch.) . Consult factory for other sizes and/or threads. . Standard inlet, outlet riser, and hub assembly are steel (also available in stainless steel). . Rollers and roller mounting brackets are accessory items. Specify roller position. . Pressures to 600 psi (41 bar). . Temperatures from -25°F to +175°F (-32°C to +79°C). . Consult factory for other pressures and temperatures. . CAUTION: When using Niedner Reeltex® hose, a special riser and/or larger drum diameter is required.
