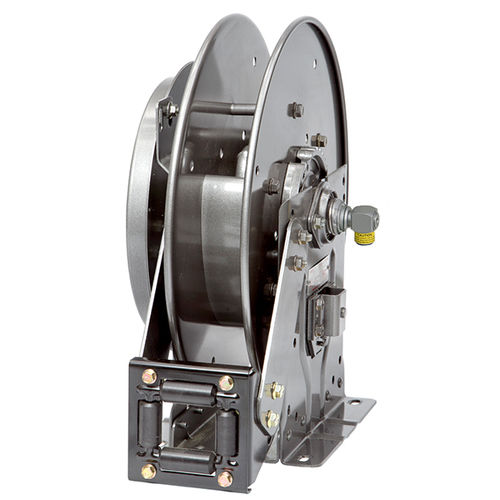

Hose reel N700 seriesfor waterfor airfor oil
Add to favorites
Compare this product
Characteristics
- Type
- hose
- Applications
- for water, for air, for oil
- Drive mechanism
- spring rewind
- Configuration
- fixed, wall-mounted, trolley-mounted, truck-mounted
- Other characteristics
- high-pressure
- Hose/cable length
Min.: 7 m
(22'11" )Max.: 30 m
(98'05" )
Description
Spring Rewind Reels
To handle 1/4" through 1/2" I.D. hose
Lubrication / Air / Water / Steam / Assembly Operations / Washdown / Air Tools / High Pressure / General Industrial Applications
- Standard N Series has a narrow frame and compact mounting base.
- Non-sparking ratchet assembly.
- Declutching arbor to prevent damage from reverse winding.
- Standard inlet: 90° balanced pressure swivel joint, 1/2" female NPT threads.
- Standard outlet: 1/2" female NPT threads.
- Standard pressures to 3000 psi (207 bar), available up to 10,000 psi (690 bar) – must specify.
- Temperatures from -60° F to +250° F (-51° C to +121° C).
- Consult factory for other pressures and temperatures.
- 4-way roller assembly.
- SR and VR roller positions: swivel joint is standard on the right, TR roller positions: swivel joint is standard on the left.
- Constant tension is available consult factory.
