Hose reel SSN700 seriesfor waterfor chemicalsfor corrosive environments
Add to favorites
Compare this product
Characteristics
- Type
- hose
- Applications
- for water, for chemicals, for corrosive environments
- Drive mechanism
- spring rewind
- Configuration
- fixed
- Reel material
- stainless steel
- Other characteristics
- compact
- Hose/cable length
Max.: 30 m
(98'05" )Min.: 10 m
(32'09" )
Description

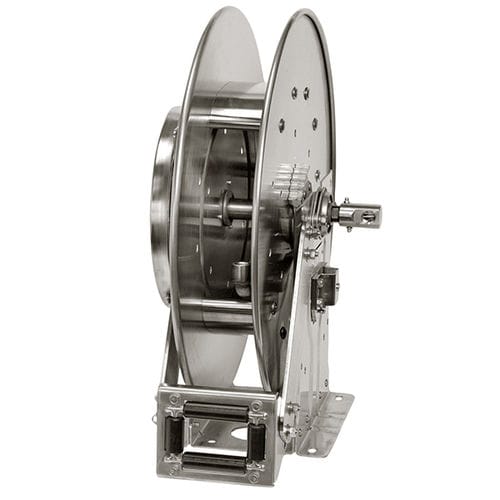

SSN700
Stainless Steel Spring Rewind Reels
To handle 1/4" through 1/2" I.D. hose
Lubrication / Potable Water / Chemical Transfer / Washdown / Corrosive Environments
Standard SSN Series has a narrow frame and compact mounting base.
Non-sparking ratchet assembly.
Declutching arbor to prevent damage from reverse winding.
Standard inlet: 90° stainless steel ball bearing swivel joint, 1/2" female NPT threads.
Standard outlet: 1/2" female NPT threads.
Standard pressures to 3000 psi (207 bar).
Temperatures from +20° F to +400° F (-7° C to +204° C).
Consult factory for other pressures and temperatures.
4-way roller assembly.
Constant tension is available consult factory.
304 stainless steel construction.
Optional SST Mosmatic ½" balanced pressure swivel joint available, subtract 1.50" from “F” dimension, specify when ordering.
