Hose reel SSN800 seriesfor waterfor airfor chemicals
Add to favorites
Compare this product
Characteristics
- Type
- hose
- Applications
- for water, for air, for chemicals, for food industry applications
- Drive mechanism
- spring rewind
- Configuration
- fixed
- Reel material
- stainless steel
- Hose/cable length
Min.: 7 m
(22'11" )Max.: 21 m
(68'10" )
Description

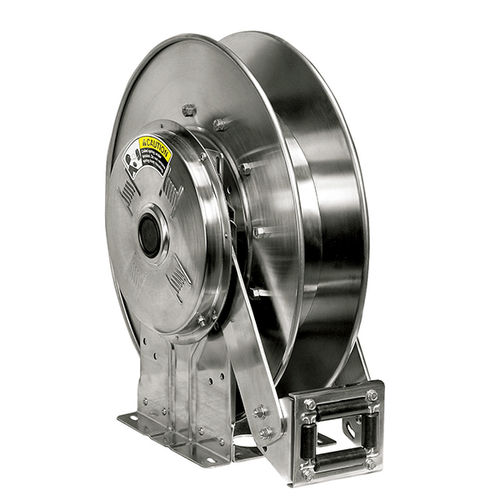

SSN800
Stainless Steel Spring Rewind Reels
To handle 3/4" or 1" I.D. hose
Dairy / Caustic Materials / Air / Water / Chemical Transfer / Food Transfer
Standard N series has a narrow frame and compact mounting base.
Non-sparking ratchet assembly.
Declutching arbor to prevent damage from reverse winding.
Standard inlet: 90° stainless steel ball bearing swivel joint, 1" female NPT threads.
Standard outlet: 1" female NPT threads.
Pressures to 1000 psi (69 bar).
Temperatures from +20° F to +400° F (-7° C to +204° C).
Consult factory for other pressures and temperatures.
4-way roller assembly.
Constant tension is available consult factory.
304 stainless steel construction.
