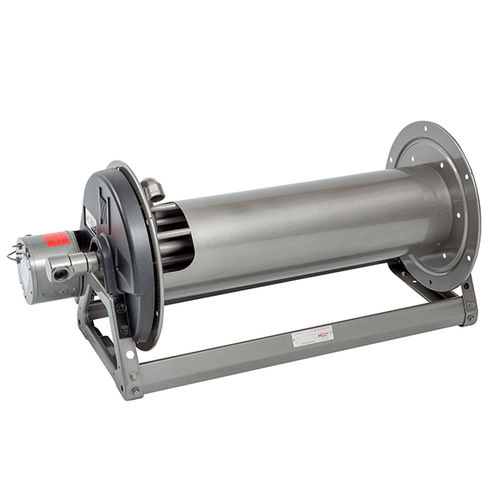

Hose reel 4000 seriesfor waterfor airmanual
Add to favorites
Compare this product
Characteristics
- Type
- hose
- Applications
- for water, for air
- Drive mechanism
- manual, motorized
- Configuration
- fixed
- Other characteristics
- rugged
- Hose/cable length
Min.: 15 m
(49'02" )Max.: 61 m
(200'01" )
Description
4000
Manual or Power Rewind Reels
To handle single 3/4" or 1" I.D. hose
Water Supply / Fire Protection / Chemical Transfer
Lightweight, compact reels designed for long lengths of hose in manual and power rewind
Manual rewind reels include: cam-lock drag brake, spring actuated pin lock and removable direct crank rewind.
Power rewind reels include: chain and sprocket drive powered by electric, hydraulic or air. Strap brake is standard.
Standard inlet: 90° ball bearing swivel joint, 1" female NPT threads
Standard outlet: 1" female NPT threads
Optional rollers: specify roller position when ordering
Standard pressures to 2,000 psi (138 bar), available up to 4,000 psi (276 bar) – must specify
Temperatures from -60° F to +250° F (-51° C to +121° C)
Consult factory for other pressures and temperatures
Catalogs
Ordering & Accessory Guide
20 Pages
Firefighting Reels
24 Pages
