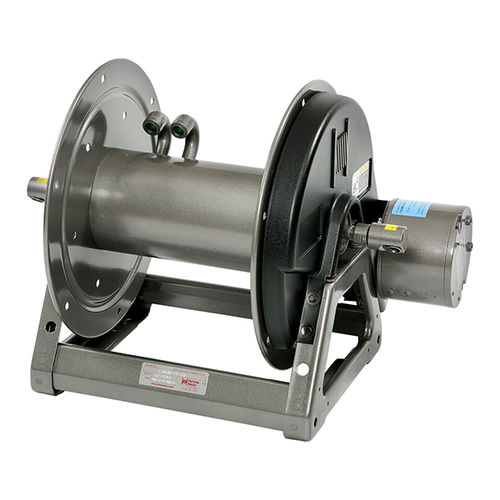

Hydraulic hose reel 2000 Seriespneumatic hosefor waterfor air
Add to favorites
Compare this product
Characteristics
- Type
- hydraulic hose, pneumatic hose
- Applications
- for water, for air, grease
- Drive mechanism
- hand crank, motorized
- Configuration
- fixed, truck-mounted
- Other characteristics
- rugged
- Hose/cable length
Max.: 91 m
(298'06" )Min.: 15 m
(49'02" )
Description
Manual or Power Rewind Reels
To handle dual 1/4" through 1/2" I.D. hose
Hydraulics / Spray Painting / Air / Water
- Two swivel joint inlets and two outlet risers to handle two equal lengths of hose
- Chain-drive crank rewind or chain and sprocket rewind powered by an electric or compressed air motor
- MX crank rewind reels have pinion brake as standard
- Power rewind reels are not supplied with a brake
- Standard inlets: 90° ball bearing swivel joints, 1/2" female NPT threads
- Standard outlets: 1/2" female NPT threads
- Standard pressures to 3,000 psi (207 bar), available up to 10,000 psi (690 bar) – must specify
- Temperatures from +20° F to +400° F (-7° C to +204° C)
- Consult factory for other pressures and temperatures
- See 2400 Series welding reels for use with oxygen/acetylene
