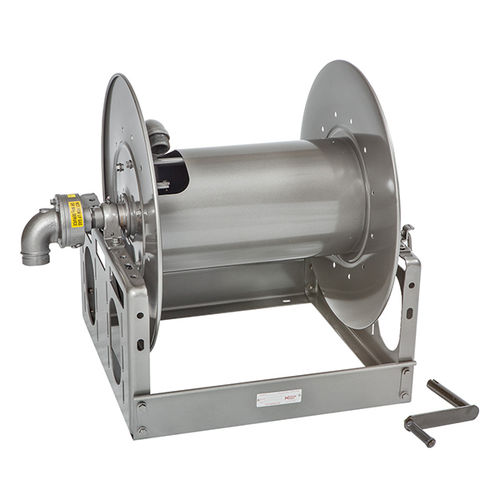

Hose reel FF3600 series

for waterfor fire protectionmanual

For Industrial Fire Protection To handle 1-1/2" I.D. hose . The reel can be installed on the floor or wall. . Steel construction is standard. Aluminum or stainless steel construction is available. . Choose disc rewind or removable direct crank rewind. . Supplied with spring actuated pinlock. . Standard inlet, outlet riser, and hub assembly are steel (also available in stainless steel). . Rollers and roller mounting brackets are accessory items. Specify roller position. . Standard inlet: 1-1/2" 90° ball bearing swivel joint with 1-1/2" female NPT threads and 2" . Victaulic® groove. . Standard outlet: 1-1/2" male NST threads (1.990" x 9 threads per inch). . Pressures to 600 psi (41 bar). . Temperatures from -25°F to +175°F (-32°C to+79°C). . Consult factory for other sizes and/or threads. . Consult factory for other pressures and temperatures. . Removable crank rewind is standard. . For hand-over-hand rewind option (less crank), consult factory. . CAUTION: When using Niedner Reeltex® hose, a special riser and/or larger drum diameter is required (consult factory).
