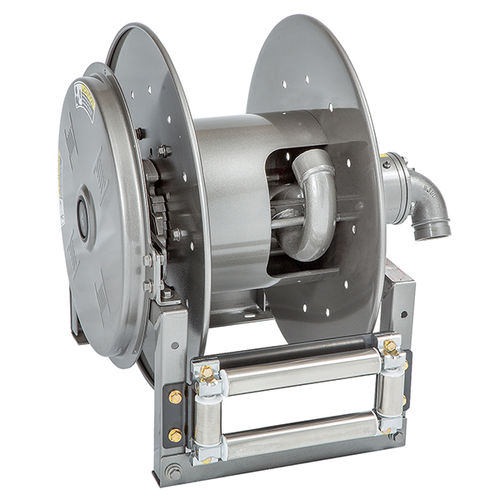

Hose reel V900 Seriesfor fuelfor the aeronautical industryspring rewind
Add to favorites
Compare this product
Characteristics
- Type
- hose
- Applications
- for fuel, for the aeronautical industry
- Drive mechanism
- spring rewind
- Configuration
- fixed, wall-mounted, trolley-mounted, truck-mounted
- Other characteristics
- rugged, compact
- Hose/cable length
Max.: 22 m
(72'02" )Min.: 7 m
(22'11" )
Description
Spring Rewind Reels
To handle 1-1/4" or 1-1/2" I.D. hose
Jet/AV Gas Fuel Dispensing
. Roll-formed channel frame construction.
. Non-sparking ratchet assembly.
. Declutching arbor to prevent damage from reverse winding.
. Standard inlet, outlet riser and hub assembly are aluminum for jet fuels.
. Standard inlet: 90° swivel joint, 1-1/2" female NPT threads and 2" Victaulic® groove.
. Standard outlet: 1-1/2" female NPT threads.
. Pressures to 600 psi (41 bar).
. Temperatures from -25° F to +250° F (-32° C to +121° C).
. Consult factory for other pressures and temperatures.
. 4-way roller assembly.
