Water pump CPE 16

brushless DCcentrifugalindustrial

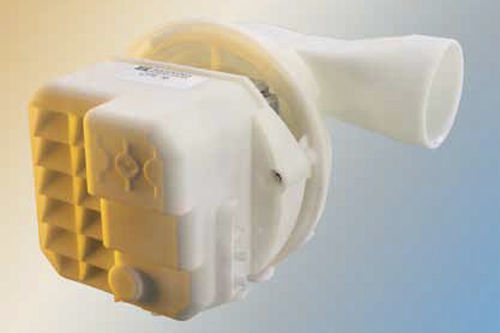

CPE 16 with attached electronic module CPE 16 has already established itself, for instance, as haflowtic sytem with integrated heating. The benefits: The electronically commutated synchronous motor is compact thanks to its BLDC design (brushless DC) as well as cost-effective and energy-efficient The necessary motor electronics are normally integrated in the mainboard of the end product. The CPE 16 haflowtic varicon version can make it, upon request, even more convenient. The electronic module of this version is located directly on the motor, and thus delivered as a ready-to-install product that fulfills all EMC requirements. TECHNICAL SPECIFICATIONS AT A GLANCE Output: max. 1401/min or 0.37 bar (at 3,000 min ') Motor input: 80W Ambient temperature: 60 °C Fluid temperature: 70 °C
