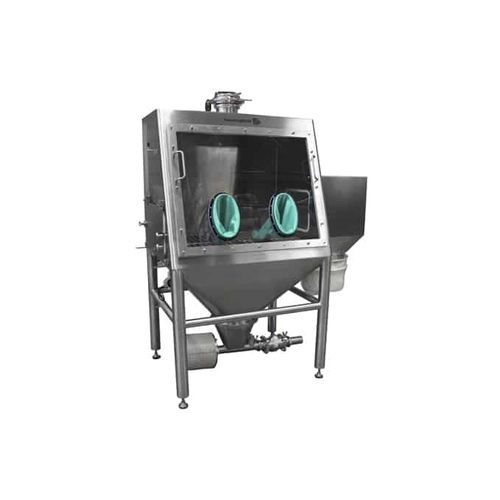

Bag emptying system

The Hanningfield sack tip station is a simple method for the emptying of sacks, bags etc. while controlling the dust emissions caused during unloading. • Enables fast, safe and easy loading of downstream process (gravity or vacuum) • Sack tip stations can be supplied with integrated dust extraction (filter / fan) • Feed bins can include agitator for bridge prevention Stainless Steel Construction 316L contact parts Custom designs available to suit any application Design & Operation The Hanningfield sack tip station is a simple method for the emptying of sacks, bags etc. while controlling the dust emissions caused during unloading. The operator lifts the bag onto the shelf of the station, piercing the bag and emptying the contents into the inlet of the downstream conveyor system. This provides a safe and contained method for the unloading of bags prior to vacuum conveying or alternative transfer methods (e.g. screw conveyors, bucket elevators). The sack-tip station incorporates a dust extraction hood to protect the operator and the process environment during emptying. Construction As standard, all contact parts are manufactured from 316L stainless steel (180 grit), with FDA compliant seals, gaskets etc. Non-contact parts such as the frame are manufactured from 304 stainless steel (150 grit). All standard materials of construction and surface finishes can be upgraded or downgraded upon request. Documentation If required, the Sack Tip Station can be supplied with full validation documentation (FS/DS, FAT, SAT, IQ/OQ) and 3.1 mill certificates to EN10204.
