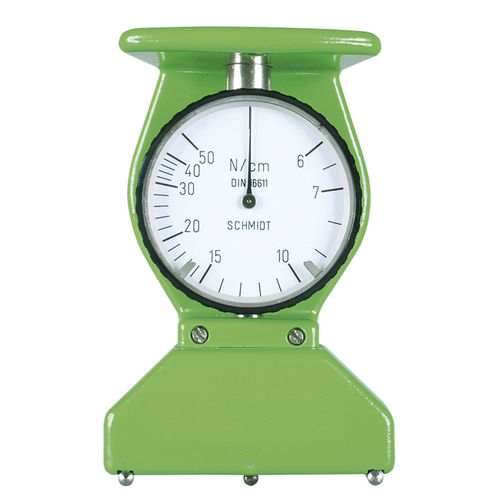

Clamping force measuring instrument FT

tension forcemanualanalog

1 Tension range available 6 - 50 N/cm Handy screen printing tension meter for synthetic and steel meshes The ideal print quality in screen printing is depending on accurate strained screens. This device is for fast and accurate identifying screens, that require reworks. To measure fast and accurately the tension on a mesh in the screen printing industry according to DIN 16611 Special Features Screen printing tension meter FT used for synthetic and steel meshes Selection of warpwise or weftwise measuring direction is possible 2 adjustable markers to set limits (MIN, MAX) for accentuation of operating range respectively tolerance range Protected precision dial gauge Adjusting and calibration according DIN EN 16611 Optionally available: Inspection Certificate 3.1 according EN 10204 with calibration report Standard Features Easy to use Screen printing tension meter with large, easy to read scale Certificate of Compliance with the order 2.1 according EN 10204 is included Model - Tension Range FT - 6 – 50 N/cm Specifications Depth of indentation: - Max. 1 mm Tension range: - 6 – 50 N/cm Standard: - According DIN EN 16611 Measuring force: - 2.1 – 3.0 N Scale diameter: - 54 mm Dimensions: - See dimensions Weight, net (gross): - Approx. 480 g (Approx. 740 g)
