Tension/compression test bench HV-3000Nmanualfor materialsmechanical
Add to favorites
Compare this product
Characteristics
- Test type
- tension/compression
- Operating mode
- manual
- Test material
- for materials
- Technology
- mechanical
- Configuration
- vertical
Description

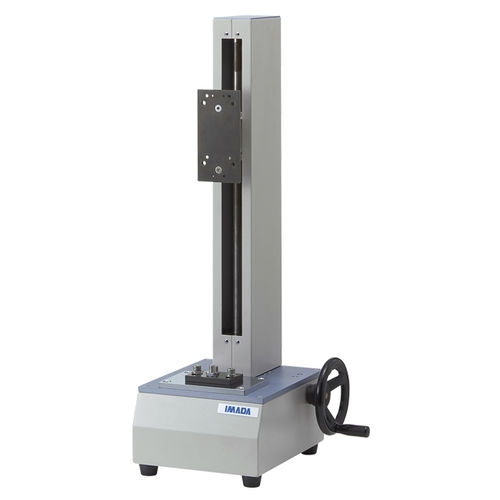

The vertical manual test stand HV-3000N is suitable for tension and compression test with a maximum capacity of 3000 N. Operation occurs by hand wheel. The mounted force gauge remains in position, when the operation wheel is released. This is ideal for creep testing on rubber and other elastic materials. The feed of 0.6 mm per complete turn of the hand wheel allows a constant manual speed and positioning the mounted force gauge exactly within the travel distance of 425 mm. The test stand has a rugged design and is available with extended stroke and distance measuring system.
Catalogs
Catalog
54 Pages
