Tension/compression test bench SH-3000Nmanualfor materialsmechanical
Add to favorites
Compare this product
Characteristics
- Test type
- tension/compression
- Operating mode
- manual
- Test material
- for materials
- Technology
- mechanical
- Configuration
- horizontal
- Other characteristics
- with handwheel, rugged
Description

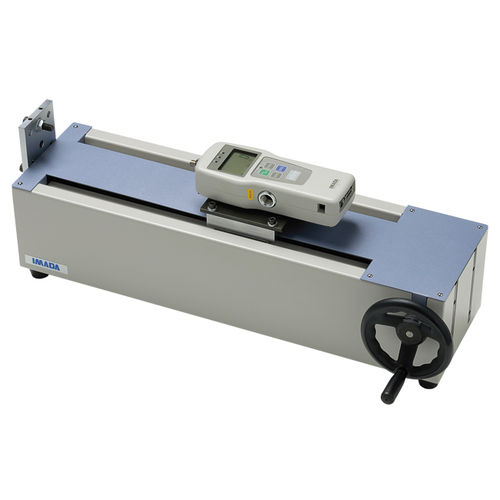

The horizontal manual test stand HV-3000N is suitable for tension and compression test with a maximum capacity of 3000 N. Operation occurs by hand wheel. The mounted force gauge remains in position, when the operation wheel is released. This is ideal for creep tests on rubber and other elastic materials. The feed of 0.6 mm per complete turn of the hand wheel allows a constant manual speed and positioning the mounted force gauge exactly within the travel distance of 365 mm. The test stand has a rugged design and is available with extended stroke and distance measuring system.
