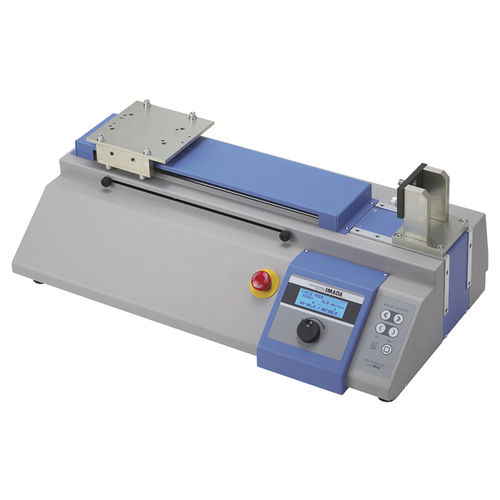

Tension/compression test bench MH2 series

motorizedfor materialshorizontal

Horizontal motorized test stand for single and continuous tests with infinitely adjustable travel speed For compression and tension measurement Test stand is equipped with timer and counter unit for endurance tests Special Features 3 operation modes: Single or continuous operation for constant test conditions – manual operation: Feed continuous so long as button is pressed or he limit switch is reached – continuous cycle operation: Force gauge travels a defined distance continuously up and down – Jog mode: Moves the cross head exactly 0.01 mm The adjusted speed is indicated in the display Integrated timer and counter function for accomplishment of endurance tests (To apply constant force for a certain number of strokes and/or at certain time. The display shows the adjusted basic conditions, as well as the executed strokes, respectively the elapsed time. Test stand MH2-2500N with infinitely adjustable travel speed from 10 to 300 mm/min 2 manual adjustable limit switches for inversion of the direction Gauge overload protection in combination with force gauge ZTS, ZTA or display unit FA Plus only (additional connecting cable is necessary) 3 different speeds adjustable (Start, measuring back) Travel distance 340 mm Sideward mounting holes for fixing a customized attachment; enables a longer measuring distance for larger probes FSA: In combination with force gauge model ZTA and software »Force Recorder Professional« force-displacement and force-time graphs can be generated.
