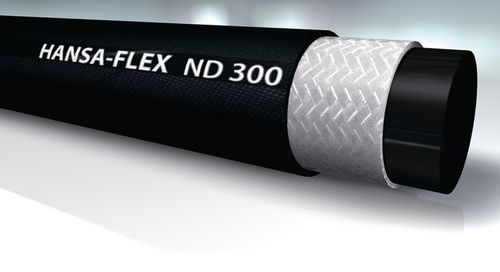

Mineral oil hose ND 300 for waterfor compressed airsynthetic rubber
Add to favorites
Compare this product
Characteristics
- Use
- for water, for compressed air, for mineral oil
- Material
- synthetic rubber
- Applications
- low-pressure
- Other characteristics
- oil-resistant, weather-resistant, fabric-braided
- Inner diameter
Min.: 6.4 mm
(0.252 in)Max.: 25.4 mm
(1 in)- Outer diameter
Min.: 12.7 mm
(0.5 in)Max.: 32.5 mm
(1.28 in)- Pressure
13 bar, 21 bar, 24 bar, 28 bar
(188.549 psi, 304.579 psi, 348.091 psi, 406.106 psi)- Temperature
Min.: -40 °C
(-40 °F)Max.: 100 °C
(212 °F)
Description
Application area
Low pressure circuits (no pressure surge loads or critical applications)
Return hoses
Pneumatic controllers
Inner layer
oil resistant synthetic rubber
Insert
one braided textile insert
Outer layer
oil resistant and weatherproof synthetic rubber
Colour
black
Standard
EN 854 R6, SAE 100 R 6, DN 25 is not specified in the standard
