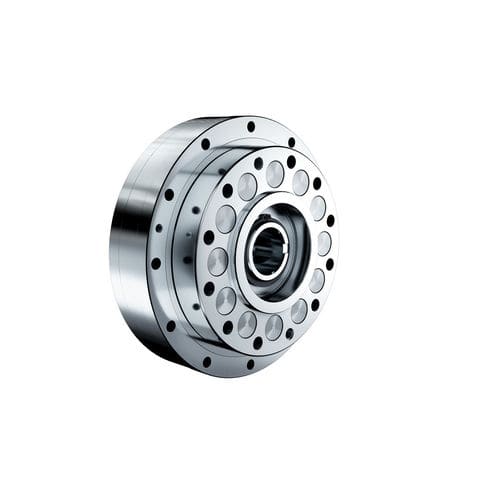

Precision shaft Fine Cyclo Abearingmachineinput
Add to favorites
Compare this product
Characteristics
- Type
- precision
- Product applications
- bearing, machine
- Other characteristics
- input, compact
- Torque
Max.: 24,000 Nm
(17,701.4916 ft.lb)Min.: 149 Nm
(109.8968 ft.lb)- Diameter
Max.: 237 mm
(9.33 in)Min.: 87 mm
(3.43 in)- Length
Max.: 131 mm
(5.157 in)Min.: 57 mm
(2.244 in)
Description
Cost effective high precision reduction kit
Reduction kit without output bearing.
Maximum freedom and flexibility for installation of external bearings and for integration in specific machine designs.
Less than 1 arcmin Lost Motion
Pre-filled with grease
Motor adapter on request
Input Shaft Variants:
Keyway
Clamp Ring
Spline
Advantages of Fine Cyclo A-Series
Highly cost effective
Compact Design
Lubricated for life
Small Moments of Inertia
High Overload Capacity
Peak torque for emergency stop up to 24000Nm
High Efficiency
