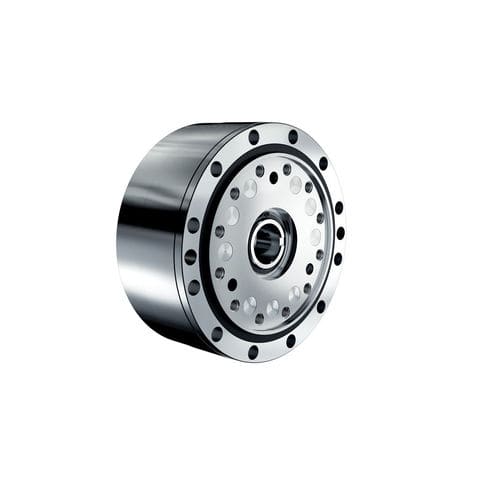

Cylindrical gearbox A F2 50 - 100 Nm200 - 500 Nm100 - 200 Nm
Add to favorites
Compare this product
Characteristics
- Type
- cylindrical
- Torque
- 50 - 100 Nm, 200 - 500 Nm, 100 - 200 Nm, 0 - 0.1 Nm, 500 - 1000 Nm, 20 - 50 Nm, 1 - 2 kNm, 2 - 5 kNm, 10 - 20 Nm, 0.5 - 1 Nm, 0.1 - 0.2 Nm, 5 - 10 Nm, 1 - 5 Nm, 0.2 - 0.5 Nm
- Configuration
- compact, flange, clamp
- Performance
- precision
- Applications
- shaft, for electric motors
- Rotational speed
6,150 rpm
(38,641.59 rad.min-1)- Gear ratio
Max.: 179 unit
Min.: 29 unit
Description
Compact all-rounder high precision gearbox
All-rounder for all available automation tasks. Compact cylindrical housing.
Less than 1 arcmin Lost Motion
Fully sealed and ready to use
Maintenance free for life
5 different ratios available (depending on size)
Many different input shaft styles and types possible
Motor adapter on request
Variants:
F2C-A cylindrical housing
F2CF-A flange housing
Input Shaft Variants:
Keyway
Clamp Ring
Spline
