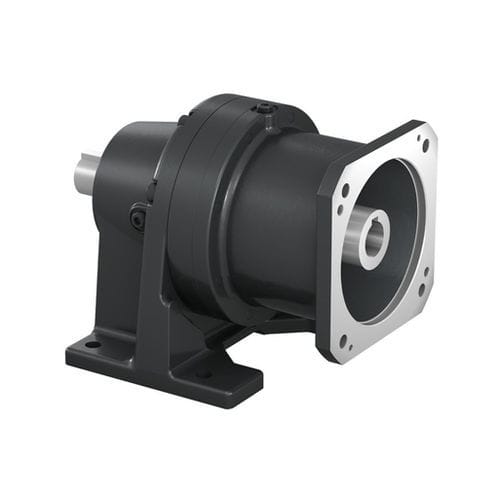

Planetary gearbox Cyclo 6000
200 - 500 Nm100 - 200 Nm500 - 1000 Nm

Planetary gearbox - Cyclo 6000 - Hansen Industrial Transmissions - 200 - 500 Nm / 100 - 200 Nm / 500 - 1000 Nm
Planetary gearbox - Cyclo 6000 - Hansen Industrial Transmissions - 200 - 500 Nm / 100 - 200 Nm / 500 - 1000 Nm
Planetary gearbox - Cyclo 6000 - Hansen Industrial Transmissions - 200 - 500 Nm / 100 - 200 Nm / 500 - 1000 Nm - image - 2
Planetary gearbox - Cyclo 6000 - Hansen Industrial Transmissions - 200 - 500 Nm / 100 - 200 Nm / 500 - 1000 Nm - image - 3
Planetary gearbox - Cyclo 6000 - Hansen Industrial Transmissions - 200 - 500 Nm / 100 - 200 Nm / 500 - 1000 Nm - image - 4
Add to favorites
Compare this product


Characteristics

Type
planetary
Torque
200 - 500 Nm, 100 - 200 Nm, 500 - 1000 Nm, 20 - 50 Nm, 50 - 100 Nm, 1 - 2 kNm, 2 - 5 kNm
Configuration
flange
Performance
low-backlash
Applications
for servo motors, shaft, for electric motors
Power

Max.: 9 kW
(12.24 hp)

Min.: 0.2 kW
(0.27 hp)

Gear ratio

Max.: 87 unit

Min.: 6 unit

Description

Reducer featuring high strength and reliability, thanks to its unique Cyclo mechanism Overview Our Cyclo Drive 6000 reducer with a flange, for servo motors. Utilizes our unique Cyclo mechanism for durability and long product life. Two Series: Cyclo Drive 6000 Standard-Backlash Series SERVO 6000 Low-Backlash Series: 6 arcmin (12 arcmin for reduction ratio 6:1) Durable and Long-Life Cyclo mechanism features smooth rolling contact that prevents tooth breakage and results in a durable reducer with a long service life. Any Mounting Direction Reducer supports the following mounting methods: Foot Mounting, Case Mounting, and Flange Mounting. Compatible with 2 Motor Shafts Compatible with keyless or keyed motor shafts.
