Primary shredder TERMINATOR series
single-shaftfor wasterugged

primary shredder
primary shredder
primary shredder
primary shredder
primary shredder
Add to favorites
Compare this product


Characteristics

Type
primary
Number of shafts
single-shaft
Application
for waste
Other characteristics
rugged, mobile, hydraulic drive
Power

Min.: 242,000 W

Max.: 429,000 W

Output

Min.: 45 t/h
(28 lb/s)

Max.: 100 t/h
(61 lb/s)

Rotor diameter

1,050 mm
(41 in)

Description

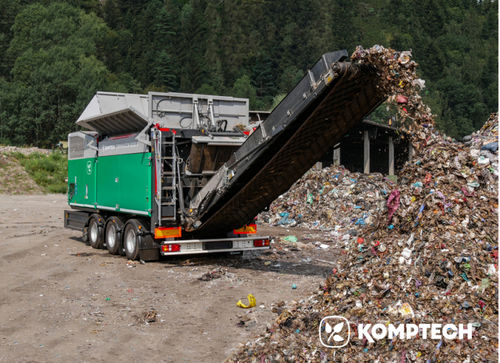

The Terminator is a slow-running, single-shaft shredder for all types of waste. Robust teeth on the shredding drum and the opposing counter comb give coarse pre-crushing to a defined shredding size. The continuous cutting gap adjustment allows precise setting of the particle size for subsequent process steps. The hydraulic drive with load-dependent speed control ensures maximum utilization of the engine output. The hook lift platform, 3-axle chassis and steel tracks with hydraulic drive options provide excellent mobility. Large hopper with hydraulically folding sides 3 types of rotors for a granulo adapted to your needs Powerful Caterpillar engine Variable particle size by adjusting cutting gap Hydraulic output conveyor with overband ASSETS AND KEY FEATURES Shredding of the most difficult materials Robust and insensitive to unwanted people Different grinding unit depending on the application Available in stationary version
