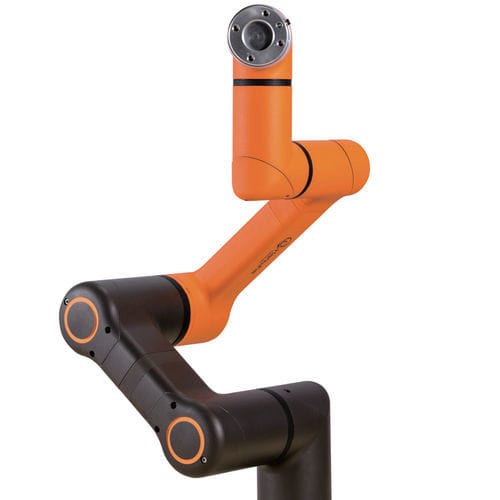

Cobot HCR-3A
6-axispick-and-placefloor-mounted

Cobot - HCR-3A - HANWHA ROBOTICS Co.,LTD - 6-axis / pick-and-place / floor-mounted
Cobot - HCR-3A - HANWHA ROBOTICS Co.,LTD - 6-axis / pick-and-place / floor-mounted
Cobot - HCR-3A - HANWHA ROBOTICS Co.,LTD - 6-axis / pick-and-place / floor-mounted - image - 2
Cobot - HCR-3A - HANWHA ROBOTICS Co.,LTD - 6-axis / pick-and-place / floor-mounted - image - 3
Cobot - HCR-3A - HANWHA ROBOTICS Co.,LTD - 6-axis / pick-and-place / floor-mounted - image - 4
Cobot - HCR-3A - HANWHA ROBOTICS Co.,LTD - 6-axis / pick-and-place / floor-mounted - image - 5
Cobot - HCR-3A - HANWHA ROBOTICS Co.,LTD - 6-axis / pick-and-place / floor-mounted - image - 6
Add to favorites
Compare this product


Characteristics

Type
collaborative
Number of axes
6-axis
Function
pick-and-place
Mounting
floor-mounted, ceiling-mounted, wall-mounted
Protection level
IP64
Other characteristics
compact
Payload

3 kg
(6.614 lb)

Reach

630 mm
(24.8 in)

Repeatability

0.05 mm
(0.002 in)

Speed

1 m/s
(3.3 ft/s)

Noise level

60 dB

Weight

13 kg
(28.7 lb)

Description

The HCR-3A is a compact collaborative robot designed to provide an optimal solution in confined spaces where it may be challenging for humans to work. It has a payload capacity of 3kg, a reach of 630mm, and a weight of 13kg. The HCR series is Hanwha Robotics' high-quality collaborative robot brand, built on precise design and control technology. It provides reliable products and solutions for automation across various industries. Collaborative Robot (Cobot) Collaborative robots, unlike industrial robots that require safety fences for worker protection, are designed to share the workspace with humans. This minimizes or eliminates the need for safety fences, ensuring worker safety while enhancing the efficiency of workspace, processes, and time utilization. Quality and Durability The HCR series prides itself on high reliability with proven components, such as high-end reducers, obtained both domestically and internationally, and metal covers applied to ensure durability
