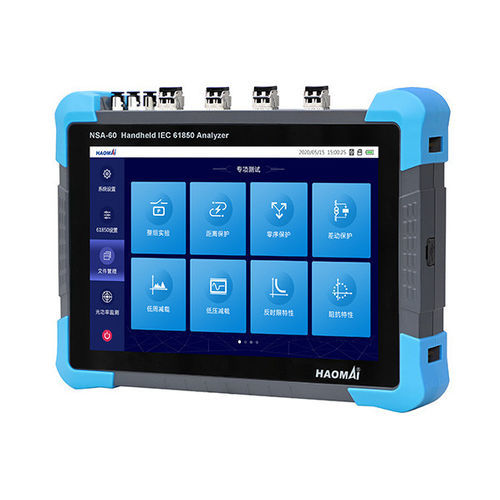

Handheld analyzer NSA-60

digitalmulti-channel

Multifunctional tool for smart substation commissioning testing and maintenance NSA-60 Handheld IEC 61850 Analyzer is designed for smart substation commissioning testing and maintenance. It is equipped with 4-channel optical digital message receiving and sending simultaneously, and supports MU delay. It is capable of simulating various types of messages which conforms to IEC 61850-9-1/9-2/9-2LE, GOOSE, and IEC 60044-7/8 FT3. Handheld IEC 61850 Analyzer NSA-60 is based on IEC61850 standard and used for quick test of protection devices, merging units and IEDs in smart substation. It is widely used in the field debugging, system joint debugging, fault maintenance and other occasions. Handheld IEC 61850 Analyzer NSA-60 is portable network analyzer with a 10.1” touch screen so that engineer can take it only to different places in the substation for checking IEDs, no need to take complicated test sets and laptop, and other testing accessories. NSA-60 has multiple testing modules for basic protection relay testing, different MU testing, SV/GOOSE sending and receiving, SCD file import and analysis etc. NSA-60 can be used as a multifunctional tool in smart substation, including sending and receiving GOOSE, SV, adding traffic flow to other IEDs, checking the MU time delay, measuring the fiber power of fiber ports etc. The main features of Handheld IEC 61850 Analyzer NSA-60 are as follows: ●Based on SOC hardware and Linux system platform developed
