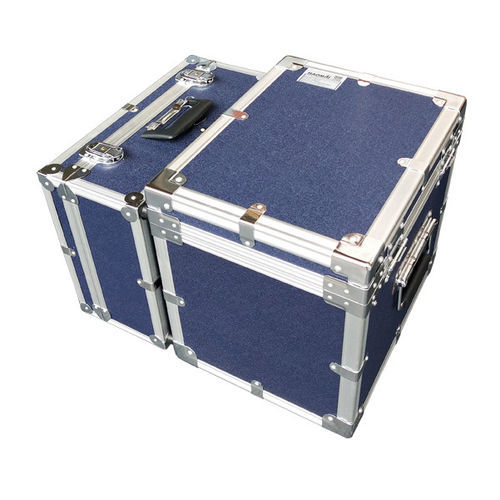

Capacitance testing device TDC3100

power factorautomatictransformer

Automatic 12kV insulation power factor/dissipation factor (tan∂) test set Tan Delta and Capacitance Tester TDC3100 is used for testing dissipation factor(tgδ), power factor(PF) and Capacitance(Cx) of transformer, circuit breaker, insulation bushing, rotating machines, cables, CVT etc. It can be operated easily via touch screen. Tan Delta and Capacitance Tester TDC3100 is fully automatic 12 kV insulation power factor/dissipation factor (tan∂) test set designed for evaluating the nature and quality of electrical insulation materials and high voltage systems such as transformers, bushings, circuit breakers, cables and windings of rotating machines etc.. Measurements of TDC3100 include voltage, current, power, tan delta, power factor, capacitance and CVT ratio. The test results can be automatically stored into instrument, and can also be downloaded directly to USB storage or printed out via built-in thermal printer. Tan Delta and Capacitance Tester TDC3100 is 22.8kg(50.27 lb), which makes it easy to transport to the testing locations. The touch screen on the panel of TDC3100 makes the operation easier and faster. Automatic balancing of dissipation factor significantly reduces the required testing time and provides high resolution.
