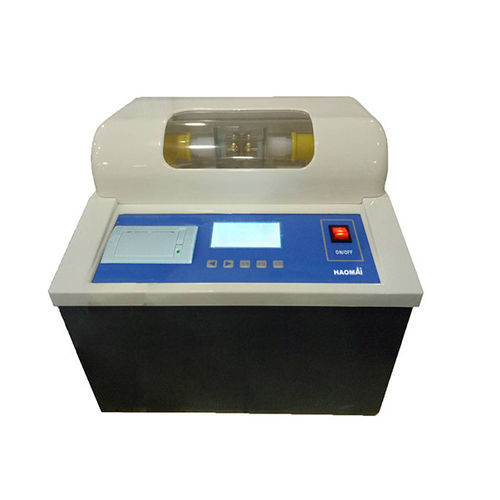

Dielectric testing device ODB-100P

insulationautomaticfor oil

Maximum AC voltage output 100kV and breakdown test of user-defined Insulation Oil Dielectric Breakdown Voltage Tester ODB-100P performs accurate breakdown voltage tests on mineral, ester and silicon insulating liquids. The maximum AC voltage output can reach 100kV. Monitoring and maintenance of oil quality is essential in ensuring the reliable operation of oil filled electrical equipment. One of the fundamental tests of oil quality is the breakdown voltage test, which is a measure of the oil’s ability to withstand electric stress. Insulation Oil Dielectric Breakdown Voltage Tester ODB-100P performs accurate breakdown voltage tests on mineral, ester and silicon insulating liquids. The maximum AC voltage output can reach100kV. The main features of Insulation Oil Dielectric Breakdown Voltage Tester ODB-100P are as follows: ●Suitable for mineral, ester and silicon oils ●Able to measure insulating oil breakdown voltage ●Maximum AC voltage output: 100kV ●Automated analysis and reporting ●Breakdown test of user-defined ●Able to save test results on-board ●Able to print test results via built-in thermal printer ●More suitable for field test due to light weight
