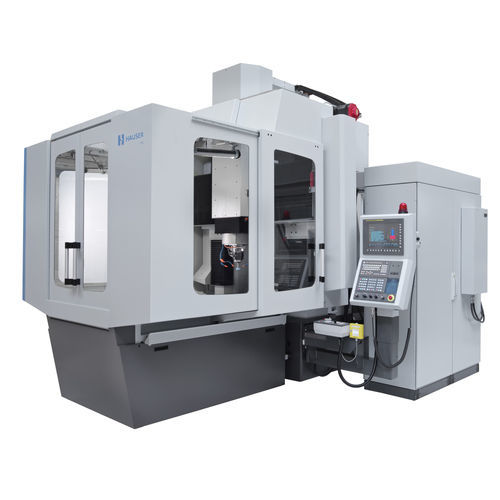

Surface grinding machine Hauser H55

workpieceCNCautomatic

Hauser 55 is an expandable jig grinding machine, from simple bore and form grinding machine to fully automatic high-tech grinding cell The Hauser H55 is an expandable jig grinding machine, from simple bore and form grinding machine to fully automatic high-tech grinding and hard milling cell. Now with a new Hauser jig grinding/hard milling head which provides an unparalleled variety of grinding and milling strategies with its Z, C and U configuration. With its high grade rigidity and stiffness plus a significantly boosted stroke speed & frequency this has lead to the doubling of stock removal capacity, reducing grinding cycle time, whilst cutting in half spark out time. Hydrostatic guided spindle bearing system allows circular accuracies better than 0,5 µm in planetary grinding and an unparalleled U axis capacity up to +47 mm increases the grinding autonomy. Automated taper grinding is available with Z U axis interpolation. Thanks to this most modern grinding head technology, the combination of high accurate jig grinding with complementary hard milling has become a Hauser focal point. Usable surface on the H55 is 1440 x 860 mm, permissible load 800kg/optional 1500 kg. Featuring a robust, distortion-resistant module and consequent lay-out with regard to thermal stability GUIDEWAYS / MEASURING SYSTEMS / AXES DRIVES Sliding guideways wherever required Linear guideways wherever possible Absolutely smooth stroke reversal •Measuring systems optimally positioned with regard to the measuring technique • Axes drives in the centre of friction GUIDEWAYS Scraped sliding guideways in X and Y axis
