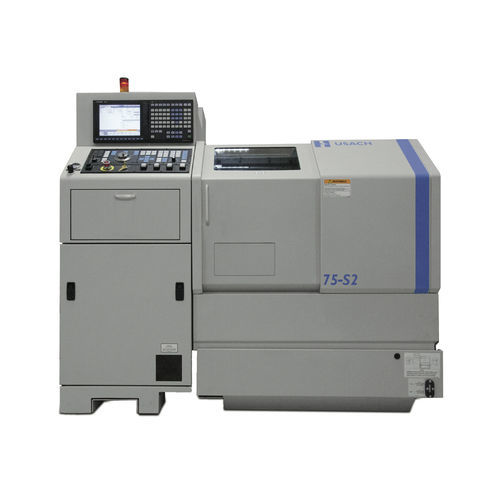

External cylindrical grinding machine USACH 75

internal cylindricalfor workpiecesuniversal

The USACH 75 CNC cylindrical grinder delivers accuracy and power in a compact design for all production and/or universal small precision parts manufacturing where IDs, ODs and faces need grinding. This model is extremely flexible in handling a wide variety of workpieces for both job shops and high-production applications, especially where high-precision is required. The machine features an 8.5” swing diameter and handles parts up to 5” in length. The USACH 75 can be configured with up to three grinding spindles for maximum production capabilities and added flexibility. The USACH 75 CNC cylindrical grinder delivers accuracy and power in a compact design for all production and/or universal small precision parts manufacturing where IDs, ODs and faces need grinding. This model is extremely flexible in handling a wide variety of workpieces for both job shops and high-production applications, especially where high-precision is required. The machine features an 8.5” swing diameter and handles parts up to 5” in length. The USACH 75 can be configured with up to three grinding spindles for maximum production capabilities and added flexibility. DESIGNED FOR PERFORMANCE The latest software design platform and FEA (finite element analysis) techniques were used to design and build a rigid, structurally-balanced machine to assure optimum performance and machine life. The FEA software accurately depicts the structural deflection, stress levels, thermal response and vibration response of the assembled components and the assembled machine. Extreme-case loadings are used to verify adverse machining conditions.
