Compression load cell max. 22 500 lbs | HLPS

block typestrain gauge

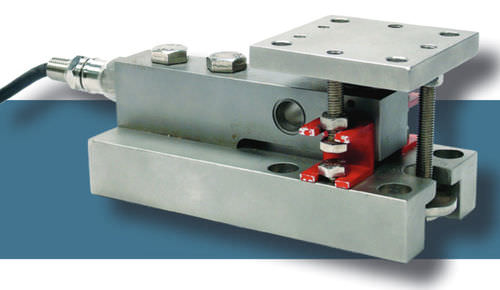

The Hardy HI HLPS ADVANTAGE® Series, sliding weigh module or load point/weigh module system (load cell plus assembly) is designed for use on medium to high capacity vessels. Each weigh module consists of mounting hardware and a stainless steel mV/V and mV/V/ohm matched load sensor with true hermetic sealing, C2® Electronic Calibration capabilities, onboard electronic certs, a ¼ NPT conduit adapter and twenty feet of cable. Each pre-assembled, low profile weigh module system provides lift off protection and consists of three mount types specifically designed to eliminate the effects of unwanted forces to provide exceptional accuracy. The assembly can be positioned 360 degrees in ninety degree steps. A grounding strap and fixed color code wiring label is provided with each load point. The mounting hardware is available in either stainless or zinc plated steel. The sensors have an IP rating of IP68/IP69K and are NTEP Class III.
