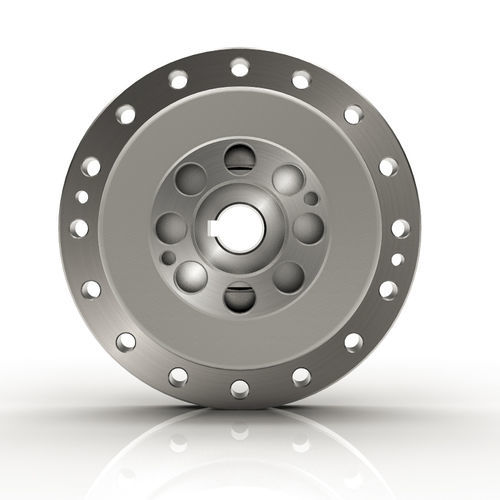

Strain wave gearhead CSG-2Acoaxialsolid-shaft20 - 50 Nm
Add to favorites
Compare this product
Characteristics
- Type
- strain wave
- Shaft orientation
- coaxial
- Shaft configuration
- solid-shaft
- Torque
- 20 - 50 Nm, 50 - 100 Nm, 100 - 200 Nm, 200 - 500 Nm, 500 - 1000 Nm, 5 - 10 kNm
- Performance
- high-precision, high-torque, zero-backlash, high load capacity
- Applications
- for automation, for medical applications, for robotics
- Rotational speed
3,500 rpm
(21,991.15 rad.min-1)- Gear ratio
Min.: 50 unit
Max.: 160 unit
Description
Harmonic Drive® CSG Series gearing component sets are our second generation of cup-type component sets. Ideal for high torque applications, CSG 2A is available in 10 sizes with gear reduction ratios from 50:1 to 160:1. CSG high torque series was based on our CSF standard torque series with the goal of upgrading load capacity, strength & reliability and extending service life.
Key Features:
Zero Backlash
High Accuracy
High load capacity output bearing
Lightweight versions also available
