Planetary gearhead HPGhelical gearright anglesolid-shaft
Add to favorites
Compare this product
Characteristics
- Type
- planetary, helical gear
- Shaft orientation
- right angle
- Shaft configuration
- solid-shaft
- Torque
- 10 - 20 Nm, 20 - 50 Nm, 50 - 100 Nm, 100 - 200 Nm, 200 - 500 Nm, 500 - 1000 Nm, 1 - 2 kNm
- Performance
- low-noise, high-precision
- Applications
- for rack-and-pinion drives
Description

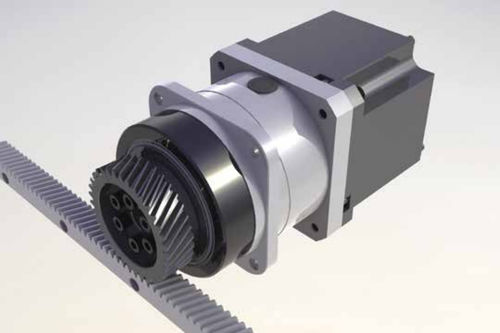

High-Precision Planetary Gearhead HPG Series + Rack & Pinion
High accuracy helical rack and pinion
Higher positioning accuracy
Runout accuracy of the pinion gear installed on the gearhead is 15μm or less
Low noise and vibration due to ground finish helical rack and pinion
Quick Specs
Helix angle: - 19.5283°
-
Rack: - Induction hardened and ground
- Module 2 - Length: 500 mm, 1000 mm
- Module 3 - Length: 500 mm, 1000 mm
-
Pinion: - Carburized and ground
- Module 2 Number of teeth 35, 40, 45
- Module 3 Number of teeth 31, 35, 40
