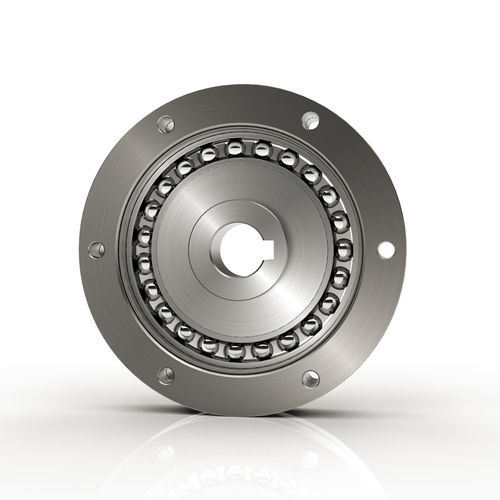

Strain wave gearhead FB-2coaxialsolid-shaft1 - 5 Nm
Add to favorites
Compare this product
Characteristics
- Type
- strain wave
- Shaft orientation
- coaxial
- Shaft configuration
- solid-shaft
- Torque
- 1 - 5 Nm, 10 - 20 Nm, 20 - 50 Nm, 5 - 10 Nm, 50 - 100 Nm, 100 - 200 Nm, 200 - 500 Nm, 500 - 1000 Nm
- Configuration
- compact
- Applications
- for automation, for medical applications, shaft, for robotics
- Other characteristics
- mechanical transmission
- Rotational speed
1,700 rpm, 2,000 rpm, 2,300 rpm, 2,500 rpm
(10,681.42 rad.min-1, 12,566.37 rad.min-1, 14,451.33 rad.min-1, 15,707.96 rad.min-1)- Gear ratio
Min.: 50 unit
Max.: 160 unit
Description
It offers the designer high ratio, in-line mechanical power transmissions in extremely compact configurations. Pancake component sets are easier to use than conventional gearing. All that is required is suitable bearing support for the input and output shaft, and a means of fixing the circular spline against rotation.
Flat shape type
High positioning and rotational accuracies
Low axial width
Easily adapted to customer supplied assembly
How it works
FB component set consists of four elements:
Wave generator, an elliptical bearing assembly
Flexspline, a non-rigid ring with external teeth
Circular Spline, rigid internal gear
Dynamic Spline, rigid internal gear
