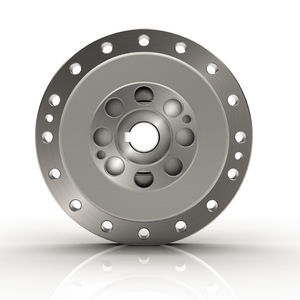

Strain wave gearhead SHF-2Acoaxialsolid-shaft10 - 20 Nm
Add to favorites
Compare this product
Characteristics
- Type
- strain wave
- Shaft orientation
- coaxial
- Shaft configuration
- solid-shaft
- Torque
- 10 - 20 Nm, 20 - 50 Nm, 5 - 10 Nm, 50 - 100 Nm, 100 - 200 Nm, 200 - 500 Nm, 500 - 1000 Nm, 1 - 2 kNm, 2 - 5 kNm
- Configuration
- compact
- Performance
- high-torque, zero-backlash
- Applications
- for automation, for medical applications, for robotics
- Rotational speed
2,200 rpm, 2,500 rpm, 3,500 rpm
(13,823.01 rad.min-1, 15,707.96 rad.min-1, 21,991.15 rad.min-1)- Gear ratio
Max.: 160 unit
Min.: 30 unit
Description
SHF series zero backlash component gear set features a brim-like mounting surface and large through hole. Available in 10 sizes with reduction ratios 30:1 ~ 160:1, SHF offers peak torques 9 ~ 1800 N•m. Made up of just 3 simple parts (flexspline, wave generator and circular spline), the SHF series were designed for direct integration into machinery and equipment. If you require high torque, see our SHG high torque version.
Key Features:
Zero backlash
High rigidity
Smooth operation
High positional and rotational accuracy
