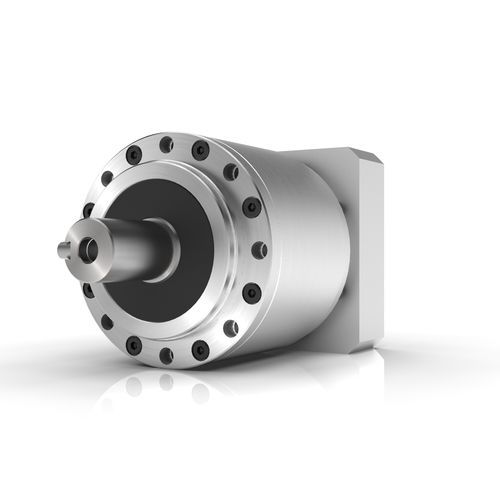

Planetary gearbox HPN-Lcoaxialsolid-shaft200 - 500 Nm
Add to favorites
Compare this product
Characteristics
- Type
- planetary
- Shaft orientation
- coaxial
- Shaft configuration
- solid-shaft
- Torque
- 200 - 500 Nm, 100 - 200 Nm, 500 - 1000 Nm, 50 - 100 Nm, 20 - 50 Nm, 1 - 2 kNm, 10 - 20 Nm, 5 - 10 Nm
- Number of stages
- single-stage, two-stage
- Performance
- high-efficiency, low-noise, high-torque, high load capacity
- Applications
- for servo motors, shaft, for electric motors
- Other characteristics
- large
- Rotational speed
6,000 rpm, 10,000 rpm
(37,699.11 rad.min-1, 62,831.85 rad.min-1)- Gear ratio
Max.: 50 unit
Min.: 4 unit
Description
Face-Mount Value Series Planetary Gear
HPN-L Harmonic Planetary® value series gearbox provides a low cost solution without the need to compromise on quality or performance. The HPN face-mount series features helical gears for high torque, quiet performance and long life. Backlash of <5 arc minutes (for single stage) is maintained for the life of the gear. Large radial ball bearings support the output shaft for high load capacity. HPN-L Harmonic Planetary® gears are available with a smooth output shaft or a shaft with a key and tapped center hole. The HPN gearheads are available with short lead times and are designed to couple to any servo motor with our Quick Connect® coupling. This new value series of planetary gears carry the reputation for quality and reliability for which Harmonic Drive® products are known throughout the world.
Helical Gearing
Available in 5 Frame Sizes
High Efficiency
Backlash <5 arc-min (single stage), <7 arc-min (two stage)
Fast Delivery
Shaft output available with key and center tapped hole or with center tapped hole
Catalogs
Harmonic Drive LLC
80 Pages
