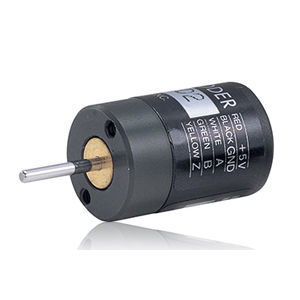

Incremental rotary encoder MES-6solid-shafthollow-shaft5 VDC
Add to favorites
Compare this product
Characteristics
- Type
- incremental
- Construction
- solid-shaft, hollow-shaft
- Supply voltage
- 5 VDC
- Other characteristics
- compact, high-resolution
- Incremental encoder résolution (pulses per revolution
Min.: 100 unit
Max.: 1,000 unit
- Shaft diameter
8 mm, 13 mm
(0.31 in, 0.51 in)- Length
10.5 mm, 20 mm
(0.413 in, 0.787 in)- Rotational speed
6,000 rpm
(37,699 rad.min-1)- Output frequency
100 kHz
- Process temperature
Min.: 0 °C
(32 °F)Max.: 60 °C
(140 °F)
Description
Super compact incremental encoders.
Available in two sizes: the micro model and the ultra-micro model, these high resolution incremental encoders are remarkably compact.
The ultra-micro model
MES-6
Dimensions ø7.5 x 10.5mm , Incremental encoder 360 line count
Output phases: A, B, Z
Square wave open collector output
The micro model
MES-9 (Single shaft)
MEH-9 (Hollow shaft)
Dimensions ø13 x 20mm , Incremental encoder 1000 line count
Output phases: A, B, Z
Square wave open collector output
Hollow shaft is also available
