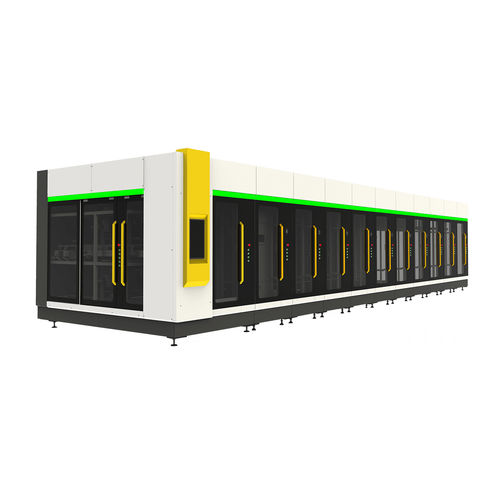

Grading machine FG1611-240

Formation and Grading Integrated Machine Introduction Harmontronics FG1611-240 is a flexible machine integrating formation and grading ,which adapt to soft-packed lithium-ion battery.Heating by water circulation and stacked-layout of functional unit fixture maximum the productivity per unit area.Modular design make it possible that the number of functional units can be freely configured according to production process requirements,as the result,which realize flexible and efficient production operation. Features & Benefits - The number of functional units can be freely configured according to production process requirements. - Reflux assembly line guarantee the realization of non-stop feeding. - Energy feedback power decrease the waste of resource and increase the energy feedback efficiency up to 80%. - High accuracy of source current and voltage to ensure the quality of battery. - Stacked-layout of functional unit fixture maximum the productivity per unit area. - Pressure accuracy can reach 0.5% F.S. - Automatic Scanning System can record the data information of each battery and realize the traceability of production data. - Heating by water circulation stably control working temperature to ±5℃. - Independent fire unit, real-time temperature and smoke monitoring ensure the safty of production. Specification Capacity - 12～15PPM Number of batteries per unit - 240 Compatible battery size - L:50-160mm W:50-110mm H:2-10mm Pressure range - 500kgf-8000kgf Pressure accuracy 0.5%F.S. *¹
