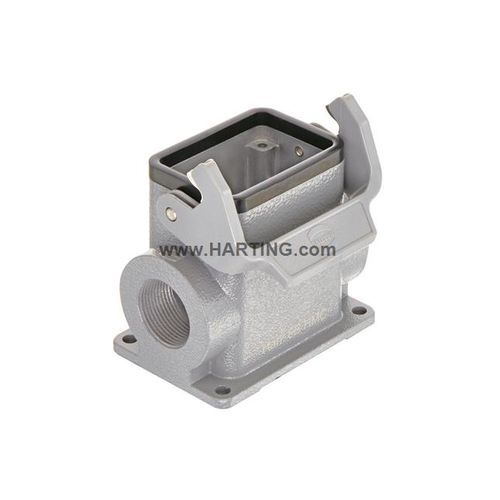

UL connector housing Han® HMC
IECmetal

UL connector housing
UL connector housing
UL connector housing
Add to favorites
Compare this product


Characteristics

Protection level
IEC, UL
Other characteristics
metal

Description

Category Hoods/Housings Series of hoods/housings Han® HMC Type of hood/housing Surface mounted housing Type High construction Size 6 B Version Side entry Cable entry 2x M25 Locking type Single locking lever Han-Easy Lock ® Yes Field of application Special hoods and housings for high mating cycles Limiting temperature -40 ... +125 °C Note on the limiting temperature For use as a connector according to IEC 61984. Mating cycles with other HMC components ≥ 10,000 Degree of protection acc. to IEC 60529 IP65 Type rating acc. to UL 50 / UL 50E 4 4X 12 Material (hood/housing) Aluminium die-cast Surface (hood/housing) Powder-coated Colour (hood/housing) RAL 7037 (dust grey) Material (seal) NBR Material (locking) Polycarbonate (PC) Stainless steel Colour (locking) RAL 7037 (dust grey) Material flammability class acc. to UL 94 (locking levers) V-0 RoHS compliant ELV status compliant China RoHS e REACH Annex XVII substances Not contained REACH ANNEX XIV substances Not contained REACH SVHC substances Yes California Proposition 65 substances Yes

Catalogs

No catalogs are available for this product.
