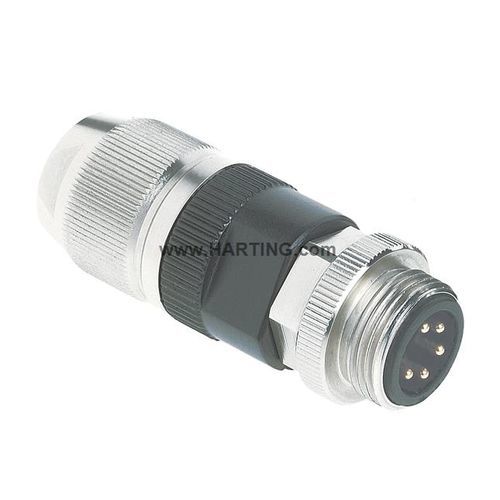

Electrical power supply connector Harax

DINcircularbayonet

Category Connectors Series Circular connectors 7/8" Element Cable connector Specification Straight Termination method HARAX® connection technology Gender Male Shielding Unshielded Number of contacts 5 Locking type Screw locking Conductor cross-section 0.75 ... 1.5 mm² Conductor cross-section AWG 18 ... AWG 16 Wire outer diameter ≤ 2.8 mm Rated current ‌ 10 A Rated voltage conductor-earth 230 V Rated voltage conductor-conductor 400 V Rated impulse voltage 4.8 kV Pollution degree 3 Overvoltage category III Insulation resistance >108 Ω Contact resistance ≤ 10 mΩ Tightening torque 1.5 Nm Wrench size (knurled screw / knurled nut) 22 Limiting temperature -40 ... +85 °C Mating cycles ≥ 100 Degree of protection acc. to IEC 60529 IP65 / IP67 mated condition Cable diameter 6.8 ... 12.5 mm Isolation group I (600 ≤ CTI) Material (insert) Polyamide (PA) Thermoplastic polyurethane (TPU) Material (contacts) Copper alloy Surface (contacts) Au over Ni Mating side Material (hood/housing) Polyamide (PA) Zinc die-cast Thermoplastic polyurethane (TPU) RoHS compliant with exemption ELV status compliant with exemption China RoHS 50 REACH Annex XVII substances Not contained REACH ANNEX XIV substances Not contained REACH SVHC substances Yes California Proposition 65 substances Yes
